| 5G-netwerk standaard | Nee |
| Interface signaal 0-10 V / 2-10 V | Ja |
| Interface signaal 0-20 mA / 4-20 mA | Ja |
| Interface signaal PT100 / PT1000 / PTC | Ja |
| Interface pulsbreedtemodulatie (PWM) | Nee |
| Interface pulsteller | Nee |
| Ondersteunt protocol voor CAN / CANOpen | Nee |
| Ondersteunt protocol voor Modbus TCP | Nee |
| Ondersteunt protocol voor Modbus RTU | Nee |
| Ondersteunt protocol voor BACnet MS / TP | Nee |
| Ondersteunt protocol voor BACnet IP | Nee |
| Ondersteunt protocol voor LON / LONWorks | Nee |
| Ondersteunt protocol voor LIN Bus | Nee |
| Toerenregeling motor | Ingebouwd |
| Max. werkdruk | 10 bar |
| Materiaal pomphuis | Gietijzer |
| Hoogte pomp | 383 mm |
| Dubbelpomp | Nee |
| Isolatieklasse volgens IEC | F |
| Mediumtemperatuur (continu) | -10 - 90 |
| Kwaliteitsklasse materiaal waaier | PP-GF |
| Aansluiting inlaatzijde | Flens |
| Nom. diameter aansluiting inlaatzijde | DN 50 |
| Nom. diameter aansluiting perszijde | DN 50 |
| Uitwendige buisdiameter aansluiting perszijde | 50 mm |
| Aansluiting perszijde | Flens |
| Energie Efficiëntie Index (EEI) | 0.17 |
| Druktrap flens aansluiting inlaatzijde | PN 6 |
| Druktrap flens aansluiting perszijde | PN 6 |

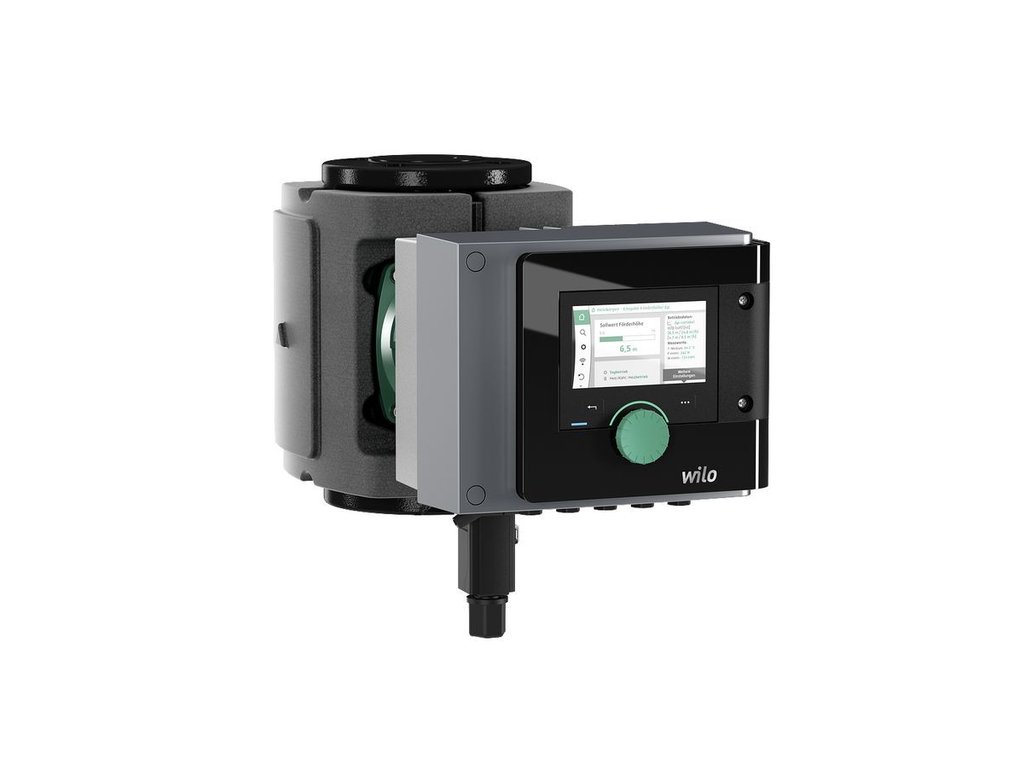

Wilo Stratos premium - Maxo - 50/0.5-9 PN6/10-R7 - 2217955
5263,50
3135,46
per stuk
2591,29
excl. btw
Vandaag voor 17:30 uur besteld, morgen in huis
Wilo Stratos premium - Maxo - 50/0.5-9 PN6/10-R7 - 2217955
Wilo Stratos MAXO 50/0,5-9 R7 - 2217955
9 meter opvoer hoogte
| Merk | Wilo |
| Leverancierscode | 2217955 |
| EAN-Code | 4062679195346 |
| Nom. stroom | 2.4 A |
| Aantal fasen | 1 |
| Max. debiet | 34.67 m³/h |
| Max. opvoerhoogte | 10.74 m |
| Flensvorm | Rond |
| Omgevingstemperatuur | -10 - 40 |
| Ondersteunt protocol voor PROFIBUS | Nee |
| Ondersteunt protocol voor KNX | Nee |
| Potentiaalvrij schakelcontact | Ja |
| Nom. spanning | 230 - 230 |
| Frequentie | 50/60 Hz |
| Beschermingsgraad (IP) | IPX4D |
| Bluetooth-netwerk standaard | Ja |
| Radiostandaard WLAN 802.11 | Nee |
| Met communicatie-interface RS-232 | Nee |
| Met communicatie-interface RS-485 | Ja |
| Ondersteunt protocol voor EtherNet/IP | Nee |
| Ondersteunt protocol voor PROFINET IO | Nee |
| Energieverbruik pomp (solpump) | 550 W |
| Energieverbruik pomp standby (solstandbypump) | 10 W |
| Opgenomen motorvermogen (P1) | 0.55 kW |
| Volumestroom (BEP) | 19.43 m³/h |
| Druk bij volumestroom (BEP) | 58.91 kPa |
| Aansluitstandaard inlaatzijde | EN 1092-2 |
| Aansluitstandaard perszijde | EN 1092-2 |
| Standaard radio 2G / 3G / 4G | Nee |
SPECIFICATIES
| Fabrikantcode | 2217955 |
|---|---|
| Artikelnummer | 0FQ4164 |
| merk | Wilo |
reviews (0)
Wilo Stratos premium - Maxo - 50/0.5-9 PN6/10-R7 - 2217955
5263,50
3135,46
2591,29 excl. btw
