Grundfos circulatiepomp Alpha3 25-40 - 180mm - 99371956
799,81
382,66
per stuk
316,25
excl. btw
Vandaag voor 17:30 uur besteld, morgen in huis

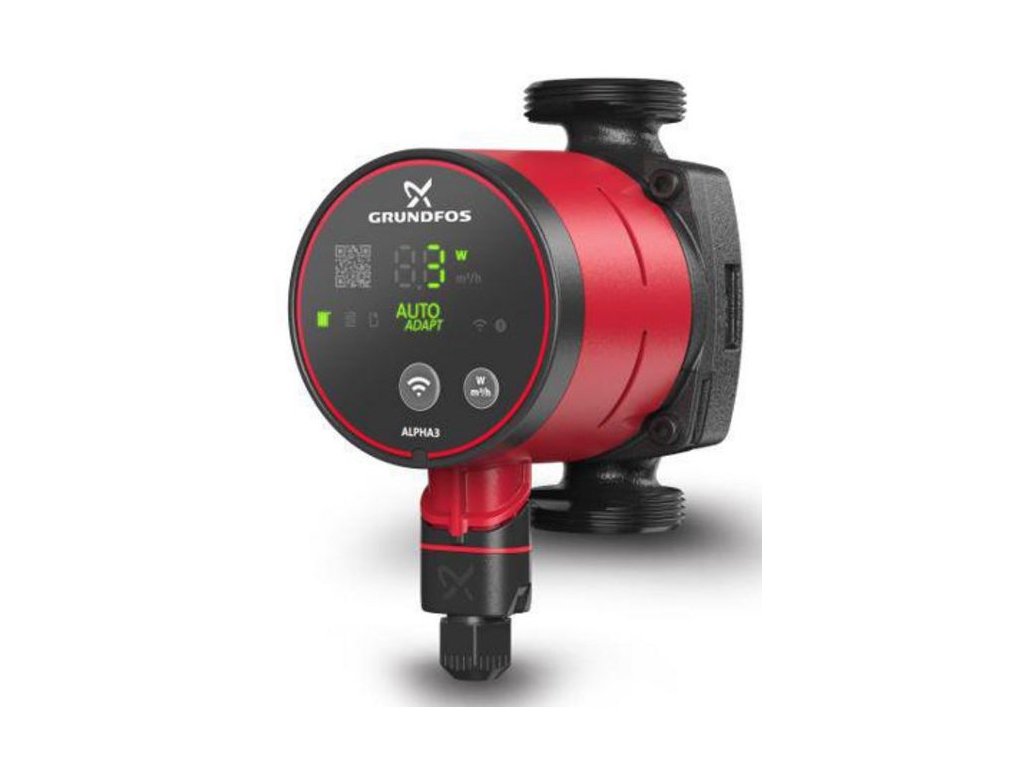

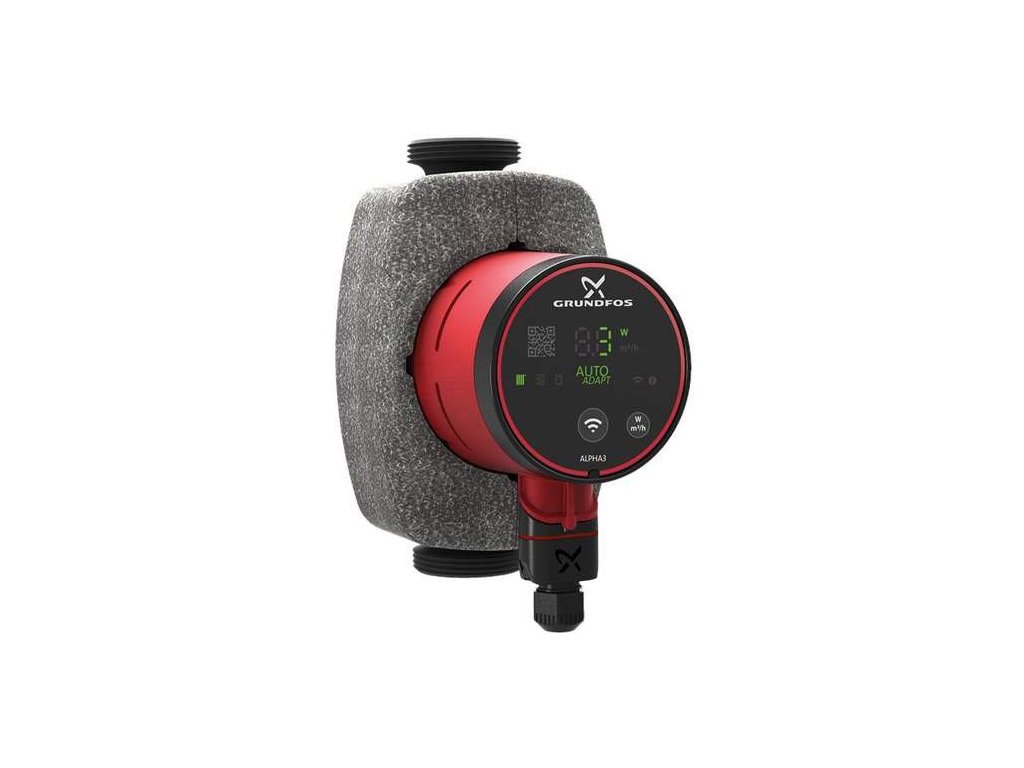

Grundfos circulatiepomp Alpha3 25-40 - 180mm - 99371956
Grundfos ALPHA3 25-40 180mm
Technische informatie
| Materiaal behuizing | Gietijzer |
| Nom. diameter aansluiting inlaatzijde | 1 1/2" (40) |
| Materiaal pomphuis | Gietijzer |
| Inbouwlengte | 180 mm |
| Max. opvoerhoogte | 4 m |
| 5G-netwerk standaard | Nee |
| Aansluiting | Buitendraad cilindrisch BSPP-G (ISO 228-1) |
| Aansluiting inlaatzijde | Buitendraad cilindrisch BSPP-G (ISO 228-1) |
| Aansluiting perszijde | Buitendraad cilindrisch BSPP-G (ISO 228-1) |
| Aansluitmaat pomphuis | 1 1/2" |
| Aansluitspanning | 1 x 230 V |
| Aansluitstandaard inlaatzijde | EN 1092-2 |
| Aansluitstandaard perszijde | EN 1092-2 |
| Aantal fasen | 1 |
| Beschermingsgraad (IP) | IPX4 |
| Bluetooth-netwerk standaard | Nee |
| Breedte 1 | 44 mm |
| Breedte 2 | 44 mm |
| Communicatie | Geen |
| Communicatiebus | Geen |
| Druk bij volumestroom (BEP) | 19,71 kPa |
| Druktrap flens aansluiting inlaatzijde | PN 10 |
| Druktrap flens aansluiting perszijde | PN 10 |
| Druktrap klasse | PN 10 |
| Druktrap klasse flens | PN 10 |
| Dubbelpomp | Nee |
| Elektrische aansluiting | Overig |
| Energie Efficiëntie Index (EEI) | 0,15 |
| Energie-efficiëntieklasse | A |
| Flensvorm ovaal | Nee |
| Frequentie | 50/60 Hz |
| Frequentie 60 Hz | Ja |
| Hoogte pomp | 104 mm |
| Interface pulsbreedtemodulatie (PWM) | Nee |
| Interface pulsteller | Nee |
| Interface signaal 0-10 V / 2-10 V | Nee |
| Interface signaal 0-20 mA / 4-20 mA | Nee |
| Interface signaal PT100 / PT1000 / PTC | Nee |
| Isolatieklasse volgens IEC | F |
| KIWA-keur | Nee |
| Kwaliteitsklasse | Overig |
| Kwaliteitsklasse materiaal waaier | Overig |
| Kwaliteitsklasse pomphuis | Gietijzer GG 15 (GJL-150) |
| Materiaal waaier / pompwiel | Overig |
| Max. debiet | 1,5 m³/h |
| Max. mediumtemperatuur (continu) | 110 °C |
| Max. werkdruk | 10 bar |
| Mediumtemperatuur (continu) | 2 - 110 °C |
| Met communicatie-interface RS-232 | Nee |
| Met communicatie-interface RS-485 | Nee |
| Min. mediumtemperatuur (continu) | 2 °C |
| Nom. debiet | 1,5 m³/h |
| Nom. diameter | DN 25 |
| Nom. diameter aansluiting perszijde | 1 1/2" (40) |
| Nom. spanning | 230 - 230 V |
| Nom. stroom | 0,18 A |
| Omgevingstemperatuur | 0 - 40 °C |
| Ondersteunt protocol voor BACnet IP | Nee |
| Ondersteunt protocol voor BACnet MS / TP | Nee |
| Ondersteunt protocol voor CAN / CANOpen | Nee |
| Ondersteunt protocol voor EtherNet/IP | Nee |
| Ondersteunt protocol voor KNX | Nee |
| Ondersteunt protocol voor LIN Bus | Nee |
| Ondersteunt protocol voor LON / LONWorks | Nee |
| Ondersteunt protocol voor Modbus RTU | Nee |
| Ondersteunt protocol voor Modbus TCP | Nee |
| Ondersteunt protocol voor PROFIBUS | Nee |
| Ondersteunt protocol voor PROFINET IO | Nee |
| Opgenomen motorvermogen (P1) | 0,018 kW |
| Opvoerhoogte bij nom. debiet | 19,71 kPa |
| Potentiaalvrij schakelcontact | Nee |
| Radiostandaard WLAN 802.11 | Nee |
| Standaard radio 2G / 3G / 4G | Nee |
| Toerenregeling motor | Ingebouwd |
| Type toerenregeling | Traploos |
| Volumestroom (BEP) | 1,5 m³/h |
| With communication interface BACnet MS/TP | Nee |
| With communication interface BACnet/IP | Nee |
| Food Contact Material | Nee |
| REACH | Nee |
SPECIFICATIES
| Fabrikantcode | 99371956 |
|---|---|
| Artikelnummer | 8306947 |
| merk | Grundfos |
reviews (0)
Grundfos circulatiepomp Alpha3 25-40 - 180mm - 99371956
799,81
382,66
316,25 excl. btw
